A Buzzing Fusebox in Huyton: What I Found and How I Repaired It
Case study by Dan | Dan Electrician
A burning smell and a buzzing sound are not what anyone wants coming from their fusebox.
On this job in Huyton, Liverpool, I found an overheated neutral bar and heat-damaged wiring inside the consumer unit.
On Saturday 17 October 2026, I diagnosed the fault and isolated the shower and oven circuits overnight. I returned on Sunday 18 October when the parts arrived, completed the repair and obtained satisfactory check results.
The total bill for this particular job was £180 including parts and labour across both weekend visits.
The five job photographs below show the consumer unit, the damage I found, the repair stages and the load check.
If your own fusebox has a burning smell or unusual buzzing, arrange urgent attention from a registered electrician. Never remove the cover yourself. If there is smoke or fire, get out, stay out and call 999.
Call Dan on 07400 238767 to discuss an urgent concern and check availability.

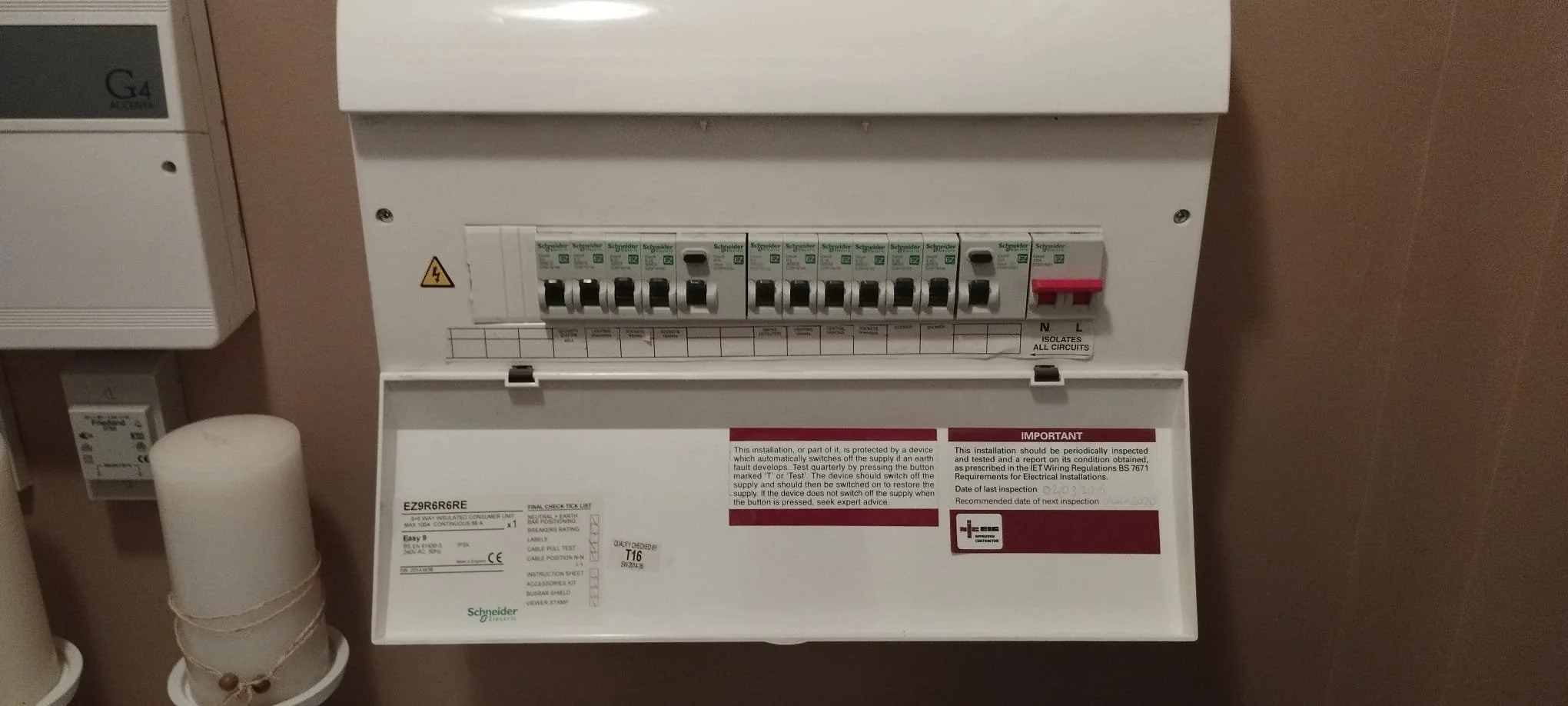

1. Before inspection: the consumer unit with its front cover fitted. The homeowner reported a smell and buzzing.

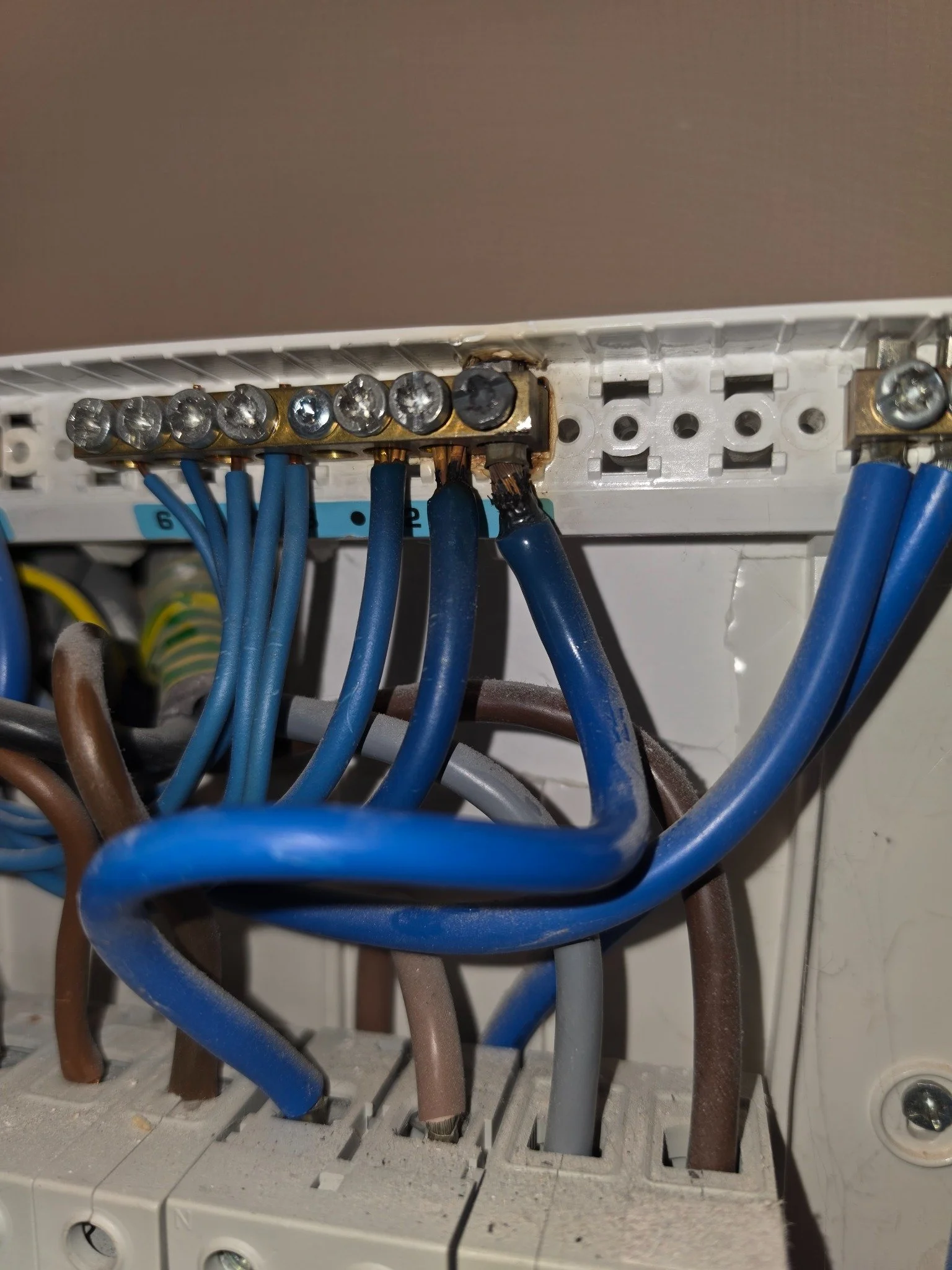

2. The fault found: overheated neutral-bar connections, damaged blue wire insulation and heat marking on the surrounding plastic.

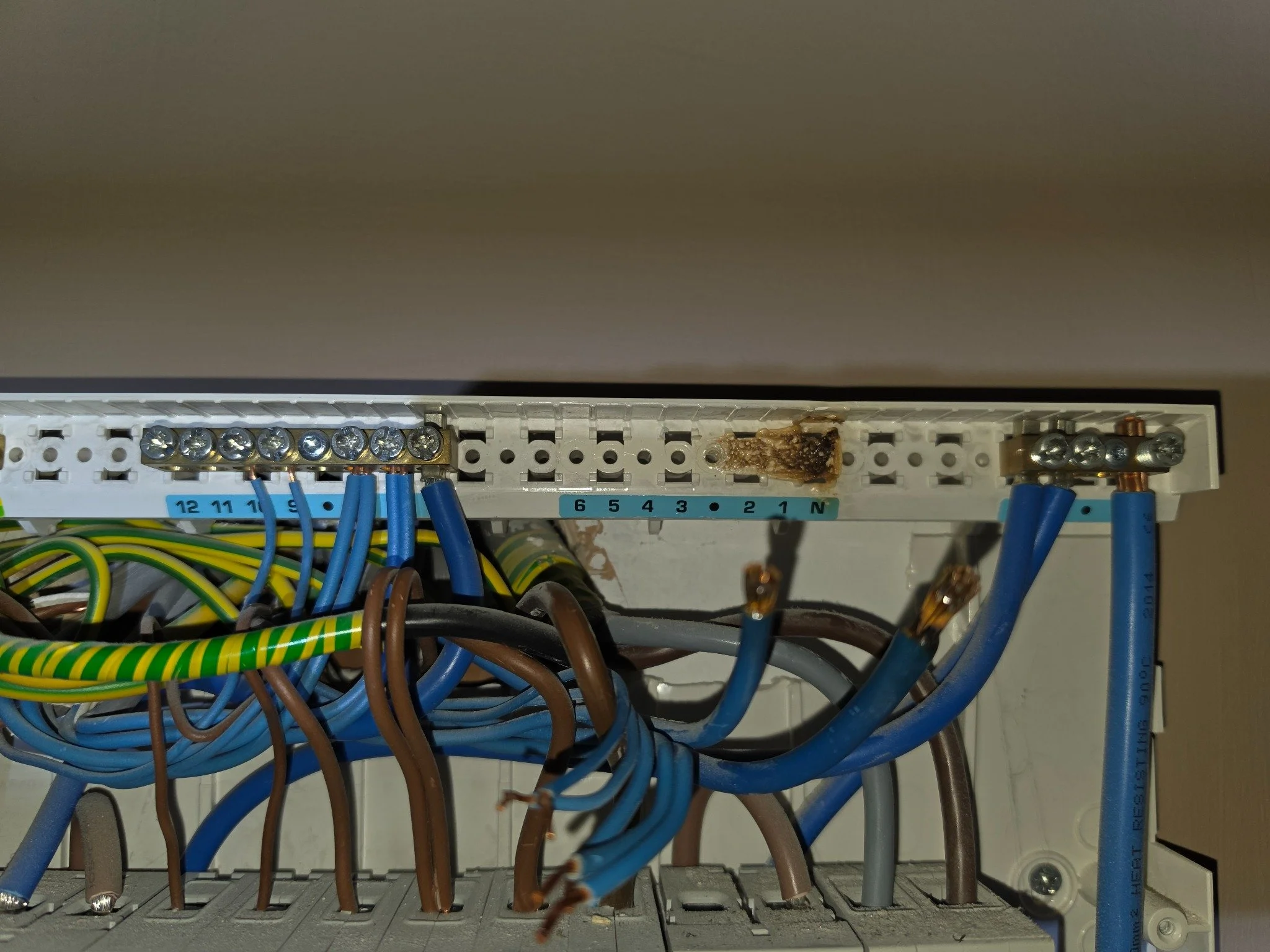

3. Repair in progress: affected neutral wires disconnected and the damaged bar removed.

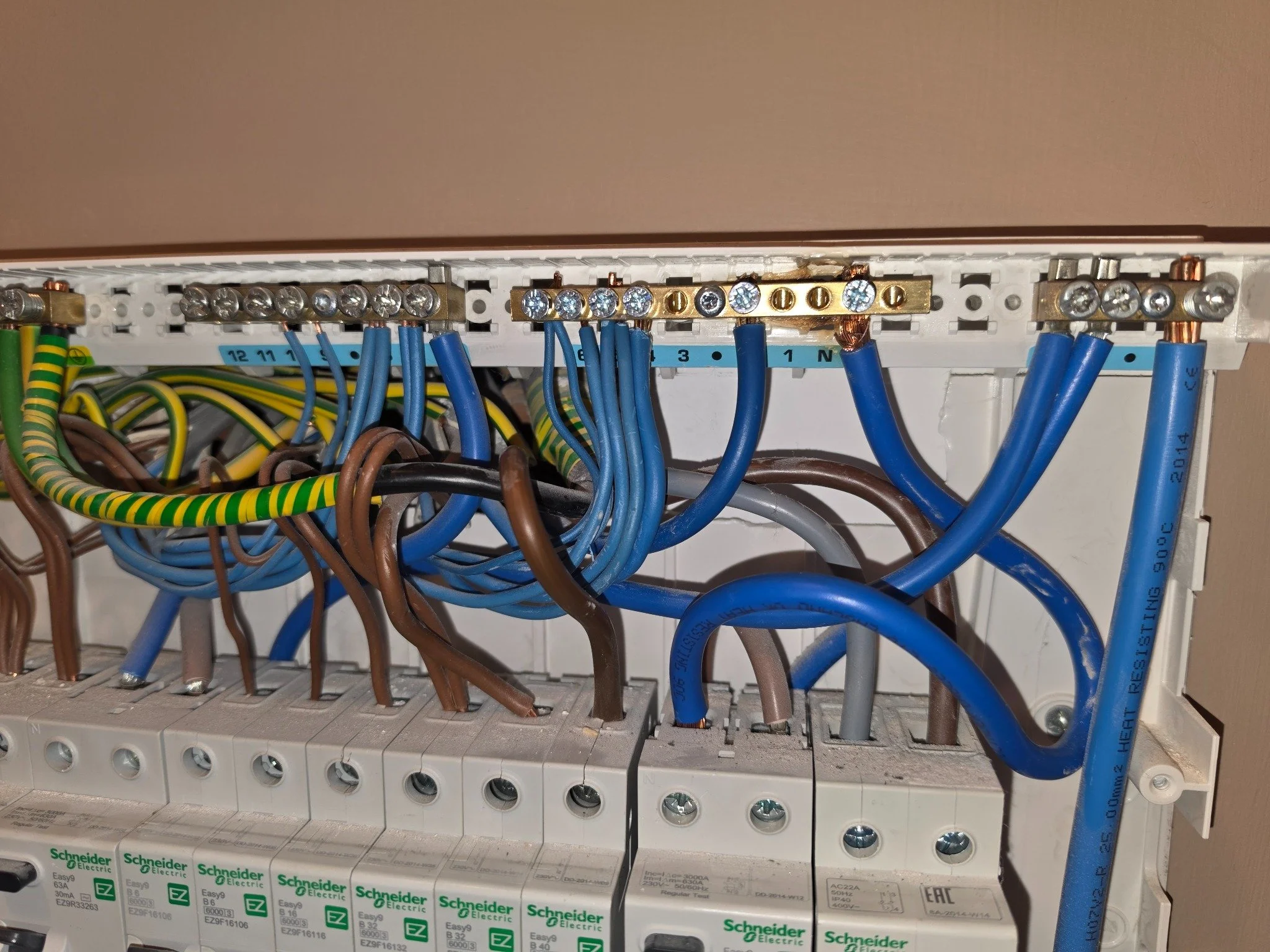

4. Repair stage: replacement neutral bar and renewed wiring. Earlier heat marking remains visible on the support behind it.

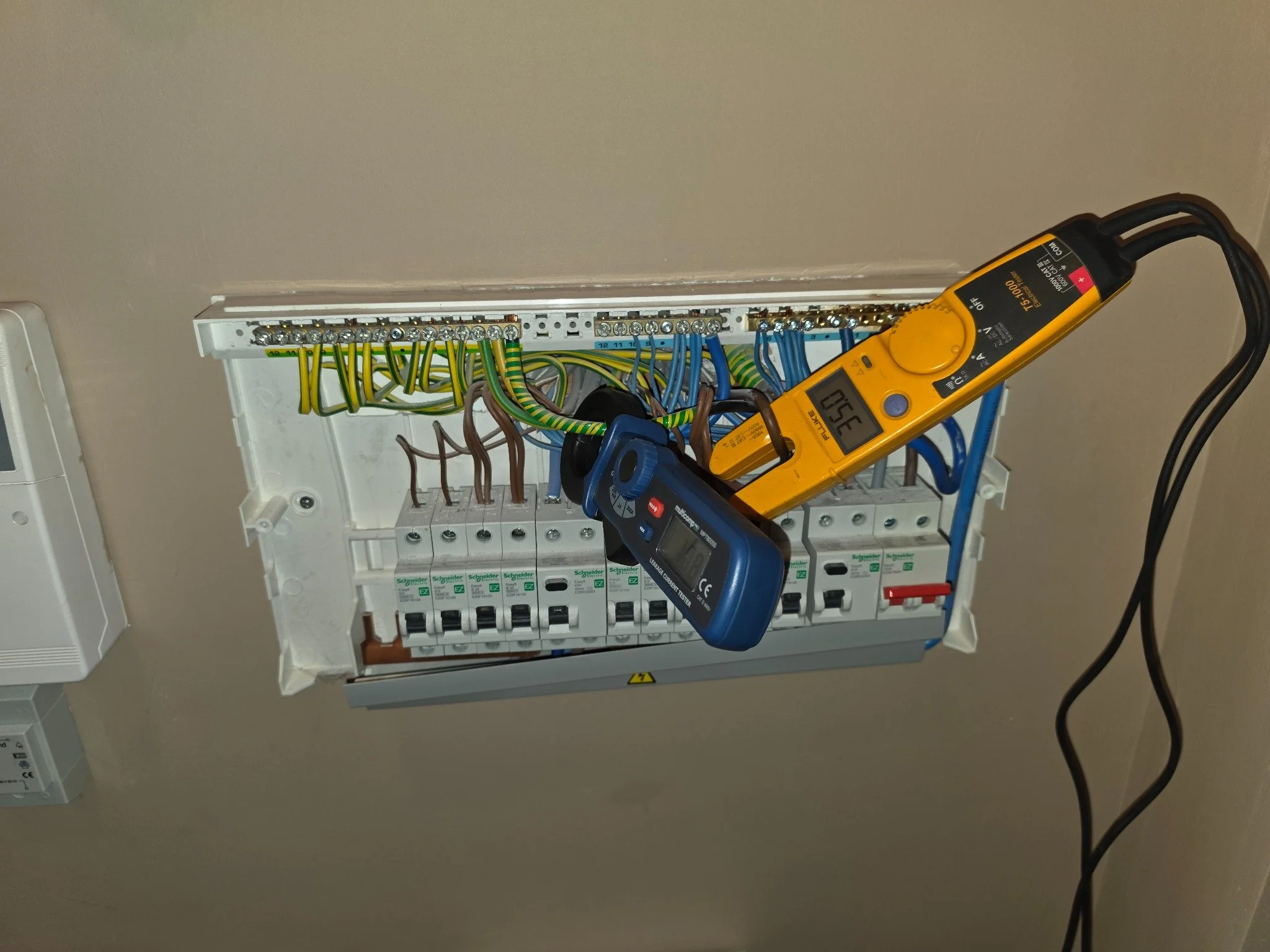

5. Load-check stage: the open consumer unit with electrical test instruments in use.
What did the fusebox inspection find?
The homeowner had reported a burning smell and buzzing from their consumer unit, often called a fusebox. During my inspection at the Huyton property, I found overheating at a neutral bar and damage to the connected wiring.
The close-up photograph shows darkened connections, damaged blue wire insulation and heat marking on the surrounding plastic. These are the findings from this job; a similar smell or noise in another home could have a different cause.
A neutral bar is a connection point for neutral wires belonging to the circuits it serves. Those connections carry current during normal use. Overheating here can damage the wiring and nearby components, so the extent of the damage matters when deciding on a repair.
Saturday diagnosis and making the system safe
On Saturday 17 October 2026, I diagnosed the problem. The replacement parts would not arrive until Sunday.
I isolated the shower and oven circuits to prevent overheating under load. Those two circuits remained unavailable overnight while the family waited for the repair. I returned on Sunday 18 October once the parts arrived.
Back on Sunday to complete the repair
Once the parts arrived on Sunday, I returned and replaced the damaged neutral bar, renewed the 16 mm² neutral link to the RCD and repaired the affected heat-damaged wiring. The RCD is a protective device in the consumer unit; the replacement described here was its neutral connecting wire.
Photo 3 shows the affected bar removed and wiring disconnected. Photo 4 shows the replacement bar and renewed wiring during the repair, with earlier heat marking still visible on the support behind it. The support showed discolouration and slight heat deformation. Following my on-site assessment, I retained it because its flat mounting surface remained suitable for the replacement parts. These photographs record work stages, rather than instructions for carrying out the repair.
What does checking a repair under load mean?
A load check involves checking the repaired arrangement while it is carrying electrical current. I carried out this check after completing the repair, rather than judging the work by its appearance alone.
Photo 5 shows the instruments in use during that stage. I also measured earth leakage in milliamps, checked loop impedance and polarity, and checked the tightening torque of the screw connections. The results of these checks were satisfactory. These checks related to the repair; they were not a condition report on every circuit in the property.
How much did this Huyton weekend repair cost?
The total bill for this particular Huyton repair was £180, including all parts and labour across both weekend visits. Dan Electrician is not VAT registered, so no VAT was charged. It covered Saturday’s fault finding and isolation of the affected circuits, followed by Sunday’s repair and checks.
This is the recorded total for one completed job, not a standard weekend call-out rate. Other faults need their own assessment: different equipment, access or more extensive damage can change the work required. I explain the appointment arrangements and applicable charges, with further work and costs discussed before proceeding.
Does a buzzing fusebox always need replacing?
Not always. On this Huyton job, the repair involved the neutral bar and associated wiring within the existing consumer unit. My recommendation to consider a consumer unit upgrade was mainly about moving to RCBO protection. This was a separate improvement recommendation alongside the completed repair. Read about consumer unit replacement. The appropriate work in another property depends on what an inspection and testing reveal.
The condition of the equipment, extent of damage and suitability of replacement parts all need consideration before recommending repair or replacement. Read about my electrical fault-finding service for more about the investigation process.
Can a buzzing fusebox be left on overnight?
Do not assume a consumer unit with unusual buzzing or a burning smell is safe to keep using. On this job, the shower and oven circuits were isolated and unavailable overnight following my on-site diagnosis. Another installation needs its own professional assessment.
Contact a registered electrician urgently, keep away from damaged equipment and leave all covers in place. Please do not try to recreate a fault for a photograph or video.
Need help with a fusebox fault in Huyton or Liverpool?
For an urgent concern, call 07400 238767. Tell me what you have noticed, when it started and your postcode so I can discuss the next step and check availability. For a non-urgent enquiry, send a short description through the contact page.
Dan Electrician provides electrical fault finding and repairs across Liverpool, Birkenhead and the Wirral. Read about our 24-hour emergency electrician service or return to Electrical Help & Advice.
About the author: I’m Dan, an electrician with over 30 years’ experience, based in Birkenhead and working across Liverpool and the Wirral. This case study describes my own fault-finding and repair work.
Further safety advice: Electrical Safety First’s fire prevention guidance.
