Outdoor & Garden Lighting Installation in Liverpool & Birkenhead
Want to make your garden, driveway or entrance safer, easier to use and better looking after dark?
Dan Electrician provides professional garden and outdoor lighting installation across Liverpool, Birkenhead and the Wirral, from simple wall lights and PIR security lighting to complete garden lighting systems with pathways, feature lights and automatic controls.
We can plan the electrical supply, cable routes, switching and outdoor fittings around your property, with the installation properly tested when the work is complete
NICEIC Registered · Fully Insured
30+ Years’ Electrical Experience
Garden · Driveway · Security · Outdoor Lighting
Outdoor Lighting Designed Around Your Property
Good outdoor lighting is not about fitting the biggest floodlight you can find.
A driveway, garden path, patio and front entrance all need different types of lighting. The best installations combine practical visibility with the right amount of light for the space.
Before installation, we look at how you use the outside area, where power is available and how the finished lighting should operate.
Garden Lighting
Garden lighting can make patios, paths, planting areas and garden features usable and attractive after dark.
Options can include:
Wall lights
Garden spike lights
Pathway lights
Step lighting
Feature lighting
Pergola lighting
Decorative LED lighting
The aim is usually to highlight selected areas rather than illuminate the entire garden at the same brightness.
Driveway & Entrance Lighting
Outdoor lighting around the front of a property can improve visibility when arriving home and make entrances easier to use after dark.
Typical options include:
Entrance wall lights
Driveway lighting
Gate lighting
Porch lighting
Automatic dusk-to-dawn controls
PIR motion sensors
The position of the fittings matters just as much as their brightness.
Outdoor Lighting Repairs
Already have garden lights that no longer work properly?
We can investigate problems such as:
Lights not switching on
RCD or RCBO tripping
Water-damaged fittings
Faulty PIR sensors
Corroded connections
Damaged outdoor cables
Intermittent faults
Lighting that fails during wet weather
Where possible, we identify the fault before recommending replacement.
The best outdoor lighting is planned around the property — the right fitting, in the right position, with the right control. More light is not always better light.

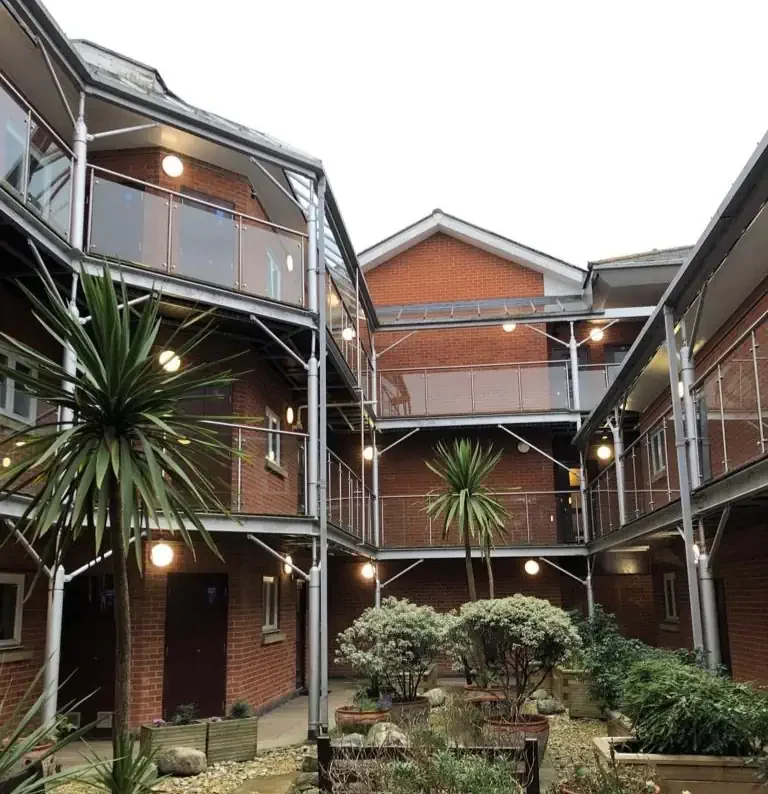

Security & PIR Lighting
PIR-controlled lights can provide automatic illumination around entrances, garages, side passages and darker areas of the property.
Sensor position needs to be considered carefully.
A badly positioned PIR can constantly react to passing traffic, pedestrians, animals or movement outside the area you actually want it to monitor.
What Types of Outdoor Lights Can We Install?
Outdoor lighting can be used for practical visibility, security or simply to make a garden look better after dark.
The right fitting depends on where the light is being installed, what you want it to illuminate and how you want it controlled. In many gardens, a combination of different light types works better than relying on one powerful fitting.
Step & Low-Level Lighting
Steps and changes in level can become difficult to see after dark.
Low-level lighting can be incorporated around suitable steps, walls or landscaping to make these areas easier to navigate while keeping the lighting discreet.
This can work especially well around patios, raised gardens and outdoor seating areas.
LED Floodlights
Floodlights are useful where a larger area genuinely needs practical illumination.
They can work well around driveways, larger gardens, garages, parking areas and commercial premises.
But bigger is not automatically better. A correctly positioned lower-output light can often provide better usable illumination than an excessively powerful floodlight producing glare.
Garden Spike Lights
Spike lights are ideal for highlighting individual garden features.
They can be positioned around planting areas and adjusted to illuminate trees, shrubs, brickwork or architectural features from below.
Because the light is directional, you can create a much more subtle effect than simply flooding the entire garden with light.

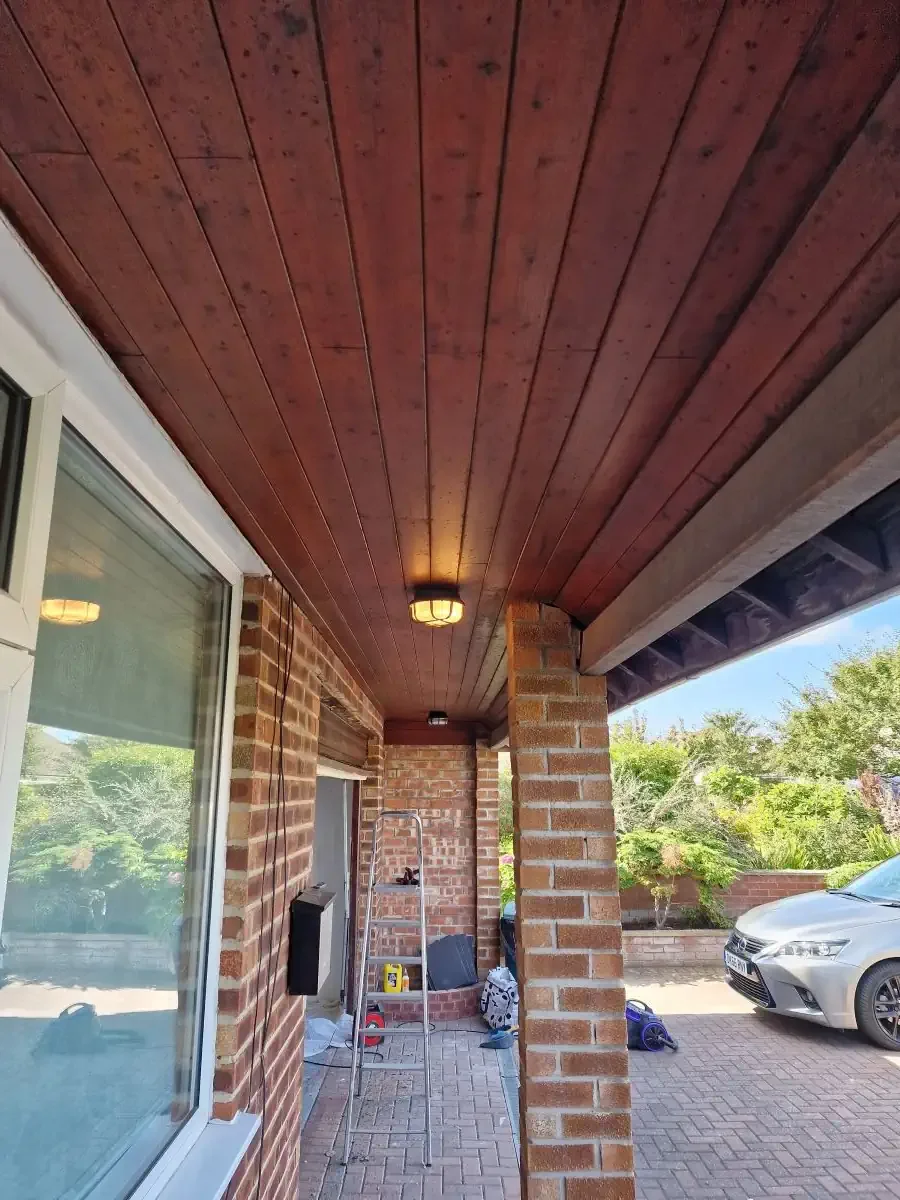

Soffit & Entrance Downlights
Outdoor-rated downlights can provide a neat finish beneath suitable porches, canopies and soffits.
They are particularly useful around entrances where you want good downward illumination without a large fitting mounted on the wall.
The fitting selected needs to suit the location and level of exposure to the weather.
PIR Motion-Sensor Lighting
PIR lighting switches on automatically when movement is detected.
This is useful around entrances, side passages, garages and access routes where you only want the light operating when somebody approaches.
Sensor positioning is important. We consider the area you actually want to detect so the light is less likely to be triggered unnecessarily by passing traffic or movement outside your property.
Pathway & Bollard Lighting
Low-level path and bollard lights can improve visibility along walkways, driveways and garden routes.
They work particularly well where you want enough light to see where you are walking without producing excessive glare.
Spacing and positioning are important — too many fittings can make a garden look more like a car park than a relaxing outdoor space.
LED Feature Lighting
Outdoor-rated LED lighting can be used to create decorative effects around:
Pergolas and covered seating areas
Garden walls
Steps
Decking
Outdoor structures
Architectural details
Feature planting
The lighting can be subtle and low-level rather than trying to illuminate the whole area.
Dusk-to-Dawn Lighting
Dusk-to-dawn controls allow suitable lights to switch on automatically as daylight fades and switch off again when daylight returns.
This can be useful for entrance lighting, driveways and low-level security lighting where you want automatic operation without having to remember a switch.
Smart Outdoor Lighting
Compatible outdoor lighting can also be connected to suitable smart controls.
Depending on the system, this can allow timed schedules, remote switching, scenes and automatic routines.
Smart controls are useful, but the electrical installation underneath still needs to be properly planned — the app does not replace good circuit design.
Which Outdoor Lighting Is Best for My Garden?
There is no single best fitting for every property.
A small patio may only need two carefully positioned wall lights, while a larger garden might benefit from a mixture of pathway, feature and seating-area lighting.
We can look at the garden, discuss the effect you want and plan the lighting before deciding how many fittings are actually necessary.
Outdoor Lighting Cables, Connections & Weather Protection
Outdoor lighting has to deal with conditions that indoor wiring normally does not: rain, moisture, temperature changes, garden work, accidental damage and long cable routes.
That means the fittings are only one part of the installation. The cable type, route, joints, enclosures and circuit protection all need to suit the environment.
Choosing the Right Cable Route
The cable route should be planned before fittings are installed.
Depending on the property, outdoor lighting cables may run:
Along external walls
Through garages or outbuildings
Beneath suitable paths or landscaped areas
Through ducts
Underground
Between garden structures
From an existing suitable outdoor circuit
The route needs to provide practical protection from damage and allow the system to be maintained in the future.
Outdoor Electrical Connections
Connections are often where poor outdoor installations eventually cause trouble.
Junction boxes and connection points need to be suitable for the environmental conditions and installed so that moisture is not allowed to compromise the electrical connection.
We avoid unnecessary hidden joints wherever practical and plan connection points so they remain appropriate for the installation.
Existing Outdoor Lighting Circuits
If a suitable outdoor lighting circuit already exists, it may be possible to extend or reuse it.
Before doing so, we consider:
Existing cable condition
Earthing arrangements
Circuit protection
RCD or RCBO protection
Existing loading
Outdoor joints and enclosures
Signs of water ingress
Results of electrical testing
An older outdoor circuit does not automatically need replacing simply because new lights are being fitted.
Underground Cables
Where cables are buried in the garden, they need to be installed so they are protected from reasonably foreseeable disturbance.
BS 7671 requires buried cables, conduits and ducts to be at sufficient depth to avoid damage from normal ground activity; IET guidance notes that less than 0.5 m is usually inadvisable.
The actual installation still depends on the location and what could reasonably happen above the cable.
For example, a flower border that is regularly dug over presents a different risk from a permanently paved area.
What Does an IP Rating Mean?
Outdoor electrical equipment is selected according to the conditions it is expected to experience.
An IP rating describes the degree of protection provided by an enclosure against access, solid objects and water.
But a higher IP number does not automatically make a fitting suitable for every outdoor position.
We consider:
Exposure to direct rain
Position beneath a roof or canopy
Water spray
Ground-level moisture
Dust and dirt
Manufacturer's installation instructions
How cables enter the fitting or enclosure
A correctly rated light can still develop problems if the cable entry or installation method allows water into the enclosure.
Why Do Garden Lights Trip When It Rains?
Outdoor lighting that trips only during or after wet weather often points towards an issue that needs investigation.
Possible causes include:
Water entering a fitting
Damaged outdoor junction box
Deteriorated cable
Poor cable entry
Corroded connections
Faulty sensor or control equipment
Insulation breakdown elsewhere on the circuit
The correct approach is to test and locate the fault rather than repeatedly resetting the RCD.
Armoured Cable for Garden Lighting
Steel wire armoured cable (SWA) is commonly used for outdoor electrical installations because it can provide good mechanical protection when correctly selected and installed.
However, SWA is not automatically required for every outdoor light.
Short external runs, cables installed in suitable containment and some manufacturer-designed lighting systems may use different wiring arrangements.
The cable should be selected around the actual installation rather than using one cable type for every garden.
Does Outdoor Lighting Need RCD Protection?
For domestic installations, new lighting circuits require appropriate additional protection, and current BS 7671 requirements include 30 mA RCD protection for luminaires on AC final circuits in household premises.
The exact arrangement may use an RCD or RCBO depending on the existing consumer unit and circuit design.
We check the existing protection rather than automatically recommending replacement of the consumer unit.
Part P & Outdoor Electrical Work
Part P of the Building Regulations applies to electrical installations associated with dwellings, including garden lighting and electrical work in outbuildings. Installing a completely new circuit is notifiable work in England.
Smaller alterations to an existing outdoor lighting circuit may be treated differently depending on the work involved.
A garden light can be weather-resistant, but the whole installation must be suitable for outdoors — cable, joints, protection and fittings all matter.
Garden Lighting Controls — PIR Sensors, Timers, Dusk-to-Dawn & Smart Switching
Outdoor lighting does not need to be controlled by a simple wall switch alone.
The right controls can make garden lighting easier to use, reduce unnecessary operating time and allow different parts of the outside space to work independently.
The best arrangement depends on what the lighting is for, when you want it to operate and how much control you want over the system.
PIR Motion Sensors
A PIR sensor switches suitable lighting on when movement is detected.
This can work well around:
Driveways
Front entrances
Side passages
Garages
Rear entrances
Access routes
Security lighting
The position of the sensor is important.
If it faces directly towards a busy road or pavement, the light may operate every time somebody walks or drives past.
We can position and adjust the detection area around the part of the property you actually want monitored.
Timed Outdoor Lighting
Timers allow outdoor lights to operate automatically at selected times.
This can be useful for decorative garden lighting where you might want the system to come on during the evening and switch itself off later at night.
For example:
Garden lights ON at dusk → remain on during the evening → automatically OFF later
This avoids leaving decorative lighting running all night simply because somebody forgot to switch it off.
Separate Garden Lighting Zones
A larger garden does not have to operate as one lighting circuit where every fitting comes on together.
Different areas can be controlled independently.
For example:
Zone 1 — Patio & seating area
Zone 2 — Pathway lighting
Zone 3 — Feature lighting
Zone 4 — Driveway & security lights
This gives you much more flexibility.
You might want patio lighting while entertaining without switching on every feature light in the garden.
Manual Switching Still Has Its Place
Not every garden needs an app.
For many properties, a properly positioned conventional switch or a combination of manual switching and automatic controls is simpler and more reliable.
The aim is to choose the control system around how you will actually use the garden rather than adding technology just because it is available.
Dusk-to-Dawn Sensors
A photocell detects the surrounding light level.
When it becomes dark, suitable lighting can switch on automatically. When daylight returns, the lighting switches off again.
This works particularly well for:
Entrance lights
Property identification
Driveways
Low-level security lighting
Commercial entrances
It can also be combined with other controls so the lights do not necessarily stay on for the entire night.
Smart Outdoor Lighting Controls
Compatible lighting systems can also use smart switching.
Depending on the equipment, this can provide:
App control
Timed schedules
Remote switching
Lighting scenes
Automatic routines
Voice control through compatible systems
Integration with other smart-home equipment
Smart controls can be convenient, but we still design the electrical installation so that the underlying wiring and switching arrangement makes sense.
Which Control Is Best?
A practical arrangement might combine several methods.
For example:
Driveway: PIR sensor
Front entrance: dusk-to-dawn
Patio: manual or smart switching
Feature lighting: timer
Side passage: PIR
This gives each part of the property the control that suits its purpose.
Good outdoor lighting control means the lights operate when you need them — not every light running every night simply because they share one switch.
Garden Lighting Design — How Many Lights Do You Actually Need?
More lights do not automatically create a better garden.
A well-designed outdoor lighting scheme uses the right number of fittings in the right positions, with different areas lit for different reasons.
The goal is to make the garden useful after dark without creating unnecessary glare, harsh shadows or a row of fittings that all compete for attention.
Start With the Areas You Actually Use
Before choosing fittings, think about how the outside space is used.
Typical areas might include:
Patio or seating area
Garden path
Steps
Driveway
Front entrance
Side access
Trees or planting
Garden walls
Pergola or outdoor structure
Garage or shed
Not every part of the garden needs to be illuminated.
Sometimes leaving darker areas between selected lighting zones gives a much better result.
Warm or Cool Light?
Different light appearances can change how a garden feels.
A warmer-looking light is often popular around:
Seating areas
Brickwork
Timber
Planting
Decorative features
A cooler appearance may sometimes suit more practical areas where clearer visibility is the priority.
The important thing is consistency.
Mixing noticeably different light appearances across the same small garden can make the installation look accidental rather than planned.
Consider Your Neighbours
Outdoor lighting should be positioned carefully so that useful light remains around your property rather than shining unnecessarily into neighbouring windows or gardens.
Good positioning can often achieve better visibility with less light, simply because more of the light is directed where it is actually needed.
Leave Room for Future Changes
Gardens change.
Plants grow, seating areas move and new structures may be added later.
Where practical, the electrical design can allow for future extensions without rebuilding the entire lighting installation.
The best garden lighting is rarely the system with the most fittings. It is the one where every light has a reason to be there.
Avoid Over-Lighting the Garden
One of the most common mistakes is fitting too many powerful lights.
This can make a garden feel harsh rather than relaxing.
Instead of trying to illuminate everything from one position, it can be better to combine:
low-level path lighting + subtle wall lights + selected feature lighting
This creates depth and makes the space easier on the eye.
Think About Glare
A light can be technically bright enough but still be uncomfortable if the lamp is directly visible from a seating area or window.We consider:
Direction of the beam
Height of the fitting
Seating positions
Neighbouring properties
Bedroom windows
Roads and pavements
Reflective surfaces
The best lighting usually illuminates the area or feature, rather than shining directly into someone's eyes.
Pathway Lighting
Path lighting does not need to create a continuous runway.
The aim is usually to make the route and changes in direction easy to see.
Carefully spaced low-level fittings can often achieve this without filling the garden with unnecessary light.
Feature Lighting
If you have a tree, wall, planting area or architectural feature you particularly like, lighting can draw attention to it after dark.
This might involve:
Uplighting
Downlighting
Side lighting
Backlighting
Changing the direction of the light can completely change the appearance of the same feature.
Patio & Seating Areas
Lighting around seating areas should normally be comfortable enough to spend time under.
That may mean using several smaller sources rather than one large floodlight above the patio.
Wall lights, pergola lighting and low-level feature lights can work together to provide useful illumination while keeping the space relaxed.
Driveways & Entrances
These areas usually need a more practical approach.
The priority may be:
Seeing the driveway edge
Finding the front door
Illuminating steps
Identifying visitors
Safely reaching the property after dark
Automatic controls such as PIR sensors or dusk-to-dawn switching can also be useful here.
Plan Before the Garden Is Finished
If you are landscaping, building a new patio or redesigning the garden, plan the electrical work early.
It can be much easier to install:
Cable ducts
Underground routes
Connection points
Lighting zones
Supplies for future equipment
before paving, decking and planting are completely finished.
This can reduce disruption and give you more freedom when positioning the final lights.
Outdoor Lighting Installation — What Happens During the Job?
A good outdoor lighting installation starts with planning rather than immediately drilling holes and running cables.
Before work begins, we look at the areas you want to light, where power is available, how the fittings will be controlled and the most practical cable routes around the property.
The exact process depends on whether we are adding a few lights to an existing circuit or installing a completely new garden lighting system.
1. Discuss the Lighting You Want
We start with the finished result.
That might include:
Patio lighting
Pathway lights
Driveway lighting
PIR security lights
Feature lighting
Garden wall lights
Pergola lighting
Automatic or smart controls
This helps us decide where fittings and switching points actually need to be rather than designing the electrical installation first and the lighting effect afterwards.
2. Check the Existing Electrical Supply
If an existing outdoor or lighting circuit is available, we assess whether it is suitable for the proposed work.
Depending on the installation, this can include checking:
Consumer unit
Existing circuit protection
RCD or RCBO protection
Earthing
Existing outdoor wiring
Condition of junction boxes
Available circuit capacity
Electrical test results
If the existing circuit is satisfactory, it may be possible to reuse or extend it.
A new circuit should only be recommended where the installation actually requires one.
3. Plan the Cable Routes
We then agree how the electrical supply will reach the new lights.
Depending on the property, routes may include:
External walls
Garages
Loft or indoor routes before exiting outside
Underground cables
Ducting beneath landscaping
Garden structures
Existing suitable cable routes
Where landscaping is still being completed, planning the cables before paving, decking or planting is finished can make the job much easier.
4. Position the Lights
Before permanently fixing everything, we consider where the light will actually fall.
For decorative lighting in particular, moving a fitting by a relatively small distance can change the finished effect significantly.
We consider:
Beam direction
Glare
Shadows
Seating positions
Windows
Paths and steps
Neighbouring properties
PIR detection areas
The aim is to position the light where it works best rather than simply where it is easiest to install.
5. Install Cables, Fittings & Connections
Once the layout is agreed, the electrical installation can be completed.
Depending on the job, this may include:
Outdoor-rated cable
Armoured cable where appropriate
Junction boxes
Suitable outdoor enclosures
Wall lights
Garden lights
Switches
PIR sensors
Photocells
Timers
Smart controls
Equipment is selected and installed for the conditions in which it will be used.
6. Set Up the Lighting Controls
Automatic controls need setting up rather than simply connecting them and leaving the factory settings unchanged.
For example, a PIR may need adjustment for:
Detection range
Direction
Time delay
Light-level setting
Timers, dusk-to-dawn controls and compatible smart systems can also be configured around how you want the lighting to operate.
7. Inspect & Test the Electrical Work
Once the installation is complete, the electrical work is inspected and tested as appropriate.
This can include checks relating to:
Continuity
Insulation resistance
Polarity
Earthing
Protective devices
RCD or RCBO operation
Functional operation of switches and controls
The purpose is to confirm that the completed circuit and protective measures are suitable before normal use.
Read more about Testing and Certification
8. Final Night-Time Adjustment
For feature and decorative garden lighting, the final result is easiest to judge after dark.
Beam direction, sensor operation and lighting zones may sometimes benefit from small adjustments once you can see how the finished garden actually looks at night.
This is particularly useful for spike lights, feature lighting and PIR-controlled installations.
New Installation or Just a Few Extra Lights?
Not every job needs a complete garden lighting system.
We can also install smaller additions such as:
One new entrance light
Replacement PIR floodlight
Extra patio wall lights
Lighting for a new garden building
Additional pathway lights
Replacement damaged outdoor fittings
The electrical work should be proportionate to what the property actually needs.
A professional outdoor lighting installation should consider the finished lighting effect and the electrical installation together — position, cable route, weather protection, controls and testing all form part of the same job.
Why Do Outdoor Lights Keep Tripping or Stop Working?
Outdoor lighting faults are often more complicated than a failed lamp.
Because the installation is exposed to rain, moisture, temperature changes, garden work and accidental damage, a fault can develop in the fitting, cable, connection box, PIR sensor or elsewhere on the circuit.
If the lights repeatedly trip an RCD or RCBO, the protective device is responding to a fault that should be investigated rather than simply reset again and again.
Garden Lights Trip When It Rains
If the problem appears mainly during or after wet weather, moisture ingress is one of the first things to investigate.
Water can enter through damaged fittings, deteriorated seals, unsuitable cable entries or connection boxes that are no longer providing adequate protection.
The source of the fault may not necessarily be the light that appears closest to the wet area, so proper electrical testing can be needed to identify the affected part of the circuit.
Common Outdoor Lighting Faults
Problems we investigate can include:
Water entering outdoor fittings
Damaged or deteriorated cables
Corroded electrical connections
Failed junction boxes
Faulty PIR sensors
Failed photocells or timers
Loose electrical connections
Damaged underground wiring
Faulty LED drivers
Insulation breakdown
RCD or RCBO tripping
Lights working intermittently
Several lights failing together
Outdoor Lights Flicker or Work Intermittently
Intermittent outdoor faults should not be ignored simply because the lights eventually come back on.
Flickering or unreliable operation can result from deteriorated connections, moisture, damaged equipment or a developing cable fault.
Finding the cause early can prevent a small problem becoming a complete circuit failure later.
One Garden Light Has Stopped Working
If a single fitting stops working while the rest of the system operates normally, the fault may be limited to that light or its immediate connection.
Possible causes include the lamp or LED fitting itself, a failed driver, damaged wiring or deterioration within the connection.
We can test the supply before replacing equipment unnecessarily.
Several Outdoor Lights Have Gone Off
When several lights stop operating at the same time, the problem may be further back in the installation.
The fault could involve a common junction, switching arrangement, protective device or supply cable serving that group of lights.
This is where tracing the circuit becomes particularly useful.
Can You Repair the Existing Garden Lighting?
Often, yes.
A fault does not automatically mean the entire outdoor lighting system needs replacing.
We first establish what has failed and whether the remaining installation is in satisfactory condition.
Sometimes the repair may involve one fitting, connection or sensor. In other cases, testing may show that a damaged section of cable or several deteriorated components need attention.
My PIR Light Stays On All the Time
A PIR-controlled light that never switches off does not automatically mean the sensor has failed.
The cause can include incorrect settings, poor sensor position, movement continuously within the detection area or a problem with the control equipment.
We can check whether adjustment is enough before recommending replacement.
My PIR Light Keeps Switching On for No Reason
A PIR may appear to operate randomly if it is detecting movement outside the area you intended.
Common triggers can include passing pedestrians, traffic, animals or moving vegetation.
Sometimes repositioning or adjusting the sensor solves the problem without changing the complete light fitting.
Electrical Fault Finding for Outdoor Lighting
Where the fault is not immediately obvious, electrical testing can help narrow down the affected section of the circuit.
This may involve checking the circuit in stages and separating different branches or fittings until the source of the problem is identified.
Outdoor lights that repeatedly trip, fail during wet weather or work intermittently are showing a symptom. The best repair starts by locating the actual fault rather than replacing fittings at random.
How Much Does Garden & Outdoor Lighting Installation Cost?
As a general guide:
Replacing an existing light fitting — from £80
New light installation (in addition to the fitting) — from £120
Full set of 10 garden wall lights, with wiring clipped to the wall — from £800
These are starting prices for straightforward jobs where a suitable electrical supply is already available. The final cost depends on the number of lights, the cable route, whether underground or armoured cable is needed, and the controls you choose (PIR, timer, dusk-to-dawn or smart).
What Affects the Price?
The main factors include:
Number of outdoor lights
Type and quality of fittings
Distance from the electrical supply
Cable length and route
Underground or armoured cable requirements
Existing outdoor circuit condition
New circuit requirements
RCD or RCBO protection
Junction boxes and outdoor enclosures
PIR sensors, timers or photocells
Smart lighting controls
Number of lighting zones
Access around the property
Electrical testing and certification
Complete Garden Lighting Installation
A larger project can include:
New electrical supply
Underground cable routes
Armoured cable
Multiple connection points
Pathway lights
Feature lighting
Patio lighting
Driveway lighting
Separate lighting zones
Automatic controls
Testing and certification
For these installations, planning the layout before landscaping is completed can significantly reduce disruption and installation complexity.
Who Supplies the Lights?
You can supply your own fittings, or we can discuss suitable options before the installation.
If you are purchasing lights yourself, it helps to check that they are:
Suitable for outdoor use
Appropriate for the intended location
Compatible with the chosen controls
Suitable for the electrical installation
If you already have the fittings, send us the make or product details together with photos of the area where you want them installed.
Replacing Existing Outdoor Lights
If the existing wiring is suitable and tests satisfactorily, replacing old or damaged fittings can often be relatively straightforward.
Typical jobs might include:
Replacing an old PIR floodlight
Changing entrance wall lights
Replacing damaged garden fittings
Updating older outdoor lights to LED
Replacing failed sensors
We still inspect the existing connections and wiring before reconnecting new equipment.
Cable Route Can Make a Big Difference
The cable route is often one of the biggest factors affecting cost.
A short external wall route is normally simpler than an installation requiring cables to cross a large garden or pass underneath finished paving.
If landscaping work is already planned, installing suitable ducts before the garden is finished can make future lighting installation much easier.
For these installations, planning the layout before landscaping is completed can significantly reduce disruption and installation complexity.
Repair or Replace?
If your existing garden lighting has stopped working, the cheapest solution may not be replacing the entire system.
Fault finding may identify a single failed fitting, sensor or damaged connection.
Where the rest of the installation is satisfactory, repairing the fault can be much more sensible than starting again.
Adding a Few Extra Garden Lights
Adding two or three lights to an existing suitable circuit can be much simpler than installing a completely new system.
The main considerations are whether the existing circuit can be safely extended and whether there is a practical cable route to the new fittings.
Where the existing installation is suitable, there is no reason to replace it unnecessarily.
Does Outdoor Lighting Need a New Circuit?
Not always.
If a suitable existing circuit is available, it may be possible to extend it after inspection and testing.
A new dedicated circuit may be appropriate for larger installations or where the existing electrical supply is not suitable.
We assess the installation first rather than automatically recommending additional electrical work.
Clear Quote Before Installation
A good outdoor lighting quotation should make clear what is included.
Depending on the project, this may cover:
Labour
Cable
Containment or armoured cable
Outdoor junction boxes
Protective devices
Light fittings
Controls and sensors
Electrical testing
Certification
Any agreed ground or access work
If additional electrical work is required, we explain what is needed before proceeding.
Garden lighting costs are driven by the installation, not simply by the price of the lights. The number of fittings, cable route, controls and existing electrical supply all affect the final job.
Garden & Outdoor Lighting Across Liverpool, Birkenhead & the Wirral
Dan Electrician provides garden and outdoor lighting installation across Liverpool, Birkenhead and the wider Wirral.
We work on everything from single replacement wall lights and PIR sensors to larger garden lighting systems with underground cables, multiple lighting zones and automatic controls.
Garden Lighting Installation in Liverpool
We install outdoor lighting for homes, landlords and suitable commercial properties across Liverpool.
Typical work includes:
Garden wall lights
Patio lighting
Pathway and step lighting
Driveway lighting
PIR security lights
Feature lighting
Outdoor LED lighting
Dusk-to-dawn controls
Smart lighting controls
Outdoor lighting repairs and fault finding
Where a suitable existing circuit is available, we can often extend or reuse it rather than installing unnecessary new wiring.
Garden Lighting Across the Wirral
Coverage extends across the Wirral, including areas such as:
Prenton
Oxton
Bebington
Wallasey
Upton
Bromborough
Heswall
West Kirby
Hoylake
We work on both smaller residential jobs and more involved outdoor lighting projects.
Garden Lighting for Landlords
Outdoor lighting is also important around rental properties, especially around entrances, paths, communal access and parking areas.
We can install or repair:
Entrance lighting
Security lights
External wall lights
PIR sensors
Path lighting
Faulty outdoor circuits
Where existing fittings are damaged or unreliable, we can test the circuit before recommending replacement.
Garden Lighting Installation in Birkenhead
Dan Electrician is based in Birkenhead and provides outdoor lighting installations throughout the local area.
We can help with:
New garden lighting
Replacement outdoor fittings
Security lighting
Driveway and entrance lights
PIR sensor problems
Outdoor circuits that trip
Damaged garden wiring
Lighting upgrades during landscaping projects
If you already know where you want the lights, we can assess the most practical cable route and electrical supply before installation.
Lighting for Driveways & Entrances
Outdoor lighting around the front of the property can improve visibility and make entrances easier to use after dark.
This can include:
Front door lighting
Driveway wall lights
Gate lighting
PIR-controlled lights
Dusk-to-dawn lighting
Low-level pathway lighting
The fittings and controls can be planned so the area is well lit without creating unnecessary glare.
Lighting for Businesses & Commercial Premises
We can also provide suitable outdoor lighting work for small commercial premises.
Depending on the property, this may include:
Entrance lighting
Parking-area lighting
Security lighting
External wall lights
Automatic controls
Lighting repairs
The electrical demand, access and intended use of the area are considered before the installation is planned.
Planning a Garden Renovation?
If you are having new paving, decking, landscaping or a garden building installed, it is worth planning the electrics early.
We can consider:
Underground cable routes
Ducting
Future lighting positions
Outdoor sockets
Garden buildings
Separate lighting zones
Future expansion
Installing the electrical infrastructure before the landscaping is finished can make the final result neater and reduce disruption later.
From one replacement light to a complete garden lighting system, we plan the electrical installation around the property and only recommend the work that is actually needed.
Garden & Outdoor Lighting FAQs
-
Not always.
If there is a suitable existing circuit, it may be possible to extend it after inspection and testing. A new dedicated circuit may be more appropriate for larger installations or where the existing supply is unsuitable.
We assess what is already there before recommending additional wiring.
-
Often, yes.
The best cable route depends on the layout of the property, existing paths, walls, garages, garden structures and any available ducts.
Sometimes underground cable is the best option, but other routes may avoid unnecessary disruption.
If landscaping work is planned, it is usually better to coordinate the electrical routes before paving or planting is finished.
-
Not every outdoor lighting installation automatically requires SWA cable.
The correct cable depends on where it runs, how it is protected and the conditions it will be exposed to.
Armoured cable is commonly used for suitable underground and outdoor routes, but other wiring methods can also be appropriate depending on the installation.
-
Wet-weather tripping can indicate water entering a fitting, damaged connections, deteriorated cable or another insulation fault on the outdoor circuit.
The affected light is not always the one closest to where the problem appears.
Electrical testing can help identify the faulty section before equipment is replaced unnecessarily.
-
Yes.
We can investigate existing systems where lights have stopped working, trip the RCD, operate intermittently or have damaged sensors and fittings.
Where the rest of the installation is satisfactory, repairing the actual fault can make more sense than replacing everything.
-
Yes.
We regularly replace individual wall lights, floodlights, PIR fittings and other outdoor lights where the existing wiring is suitable.
The existing connection and cable condition should still be checked before the new fitting is installed.
-
Yes.
If you have already bought the fittings, send us the product details or photos.
We can check whether they appear suitable for the location and proposed controls before installation.
For outdoor equipment, the fitting needs to be appropriate for the conditions in which it will actually be used.
-
There is no single IP rating that is correct for every outdoor position.
A light underneath a covered porch is exposed to different conditions from a fitting installed at ground level in an open garden.
The location, exposure to water and manufacturer's installation requirements all need to be considered.
-
Yes.
PIR-controlled lights can be installed around entrances, driveways, garages, rear gardens and side passages.
Sensor position is important so that the light reacts to movement where you actually want it to, rather than constantly being triggered by traffic, pedestrians or neighbouring activity.
-
Yes.
Suitable lighting can use dusk-to-dawn photocells, timers or compatible smart controls.
Different parts of the garden can also have different control arrangements.
For example, entrance lights might operate automatically at dusk while patio lighting remains manually controlled.
-
Yes, where compatible equipment is suitable for the installation.
Smart controls can provide timed schedules, remote switching and different lighting scenes.
The underlying electrical circuit still needs to be designed and installed correctly regardless of how the lights are controlled.
-
Yes.
Outdoor wall lights, low-level fittings and suitable feature lighting can be planned around patios, pergolas and seating areas.
These areas usually benefit from several smaller light sources rather than one powerful floodlight.
-
Yes.
Driveway lighting can include wall-mounted lights, low-level fittings, entrance lights, PIR controls and dusk-to-dawn operation.
We plan the fittings so they provide useful visibility without creating unnecessary glare towards the road or neighbouring properties.
-
Yes — and that is often the best time to plan it.
Before paving, decking and planting are finished, we can consider cable routes, ducts, future lighting positions and supplies for additional outdoor equipment.
Planning early usually gives more options for a neat finished installation.
-
Yes, depending on the electrical installation.
If you are already having new outdoor cabling installed, it can be practical to discuss future socket requirements at the same time.
The socket circuit still needs to be designed and protected appropriately rather than simply connecting it to the lighting because the cable happens to be nearby.
-
Yes.
New or altered electrical work is inspected and tested as appropriate before being put into normal service.
The testing depends on the work carried out and the circuit involved.
-
Where electrical installation work requires certification, the appropriate documentation is provided following satisfactory inspection and testing.
The exact certificate depends on whether the job involves a new circuit or alterations to an existing one.
-
It depends on the size of the project.
Replacing one existing light may be relatively quick, while a complete garden lighting system with underground cable routes, several zones and automatic controls can require considerably more work.
The cable route and accessibility usually make a bigger difference than the number of fittings alone.
-
Call Dan on 07400 238767 or send a quote request.
For a useful initial assessment, send:
Your postcode
A few photos of the garden or outside area
Approximate number of lights you want
Photos of any existing outdoor lights
Whether landscaping is planned
Details of any fittings you have already bought
A photo of the consumer unit if available
You do not need to design the electrical system yourself. We can look at what you want to achieve and explain the practical options.
Not sure what lights, controls or cable route you need? Start with the garden and the effect you want — we can work out the electrical side from there.
Helpful Outdoor Lighting Guides
Planning garden lighting often raises questions about existing circuits, RCD protection, cable routes and faults that only appear in wet weather.
These related guides can help you understand the electrical side before booking the work.
Why Does My RCD Keep Tripping?
If your garden lights or outdoor circuit keep tripping the RCD, the fault should be investigated rather than repeatedly reset.
Electrical Fault Finding
Outdoor lighting faults can involve damaged cables, water ingress, failed fittings, bad connections or faulty controls.
Proper testing helps identify the problem before equipment is replaced unnecessarily.
Need Garden or Outdoor Lighting Installed?
Whether you want a few new wall lights, better driveway lighting, PIR security lights or a complete garden lighting system, Dan Electrician can plan the electrical installation around the property and the effect you want to achieve.
We provide outdoor lighting work across Liverpool, Birkenhead and the Wirral, including:
Garden lighting
Driveway and entrance lighting
Patio lighting
Path and step lighting
PIR security lights
Dusk-to-dawn controls
Smart outdoor lighting
Underground and armoured cable routes
Outdoor lighting repairs
Fault finding
Testing and certification
If you already have the fittings, send us photos or product details.
If you are still deciding what to install, send a few photos of the garden or outside area and we can discuss practical options for the layout, cable routes and controls.
Get a Garden Lighting Quote
Call Dan on 07400 238767 or send us a message with the details of the job.
RCD vs RCBO
Not sure how an RCD differs from an RCBO?
This guide explains how each device protects electrical circuits and why individual circuit protection can be useful.
READ: RCD VS RCBO
Consumer Unit Replacement
If testing shows that the existing consumer unit cannot provide suitable protection for the proposed outdoor circuit, an upgrade may sometimes be recommended.
We assess the existing installation first and only recommend replacement where it is actually justified.
VIEW:
NICEIC Registered · Fully Insured
30+ Years’ Electrical Experience
Liverpool · Birkenhead · Wirral
Good outdoor lighting is not about fitting more lights. It is about putting the right lights in the right places, with the right controls and a properly designed electrical installation.
